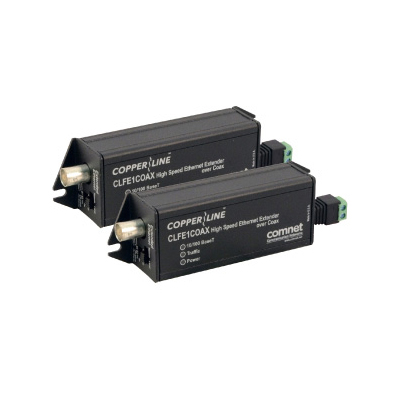

Pack Ethernet-over-Coax Extender with Pass-Through PoE

• The ComNet™ CopperKit CKFE1COAX Ethernet over COAX line consists of a pair

of CLFE1COAX which support one channel of 100Mbps Ethernet as well as Pass-

through Power over Ethernet (PoE) over standard 75Ω coaxial cable.

• These units support transmission distances of up to 5,000 feet (1524m) at

10 Mbps, or 1800 feet (548m) at 100 Mbps.

• The IEEE 802.3-compliant extenders also meets the requirements for IEEE

802.3af PoE power, passing power to the powered device (PD).

• The CLFE(X)COAX series may also be used interchangeably with other

CopperLine Ethernet-over-Coax extenders.

• LED indicators confirm operating status of the device.
• Packaged in a rugged aluminum housing, these units are designed for desktop

or stand-alone mounting.

• Environmentally hardened to the requirements of NEMA TS-1/ TS-2 for most

out-of-plant applications, and true plug-and-play design ensures ease of

installation and operation.
